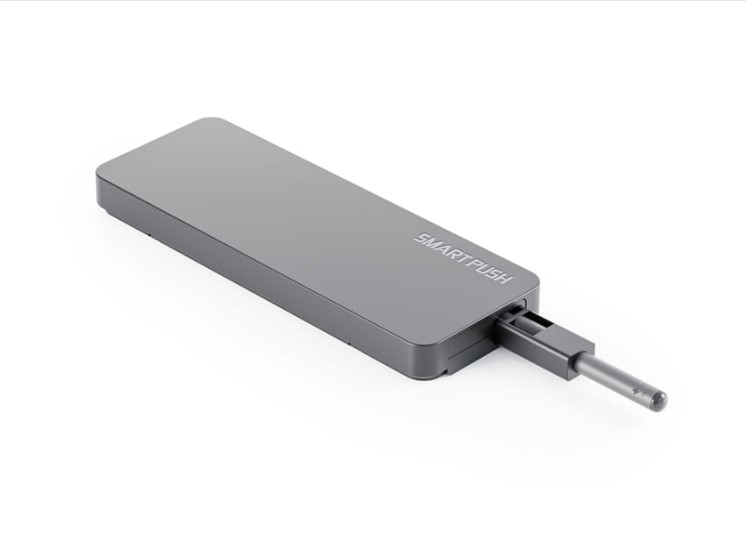

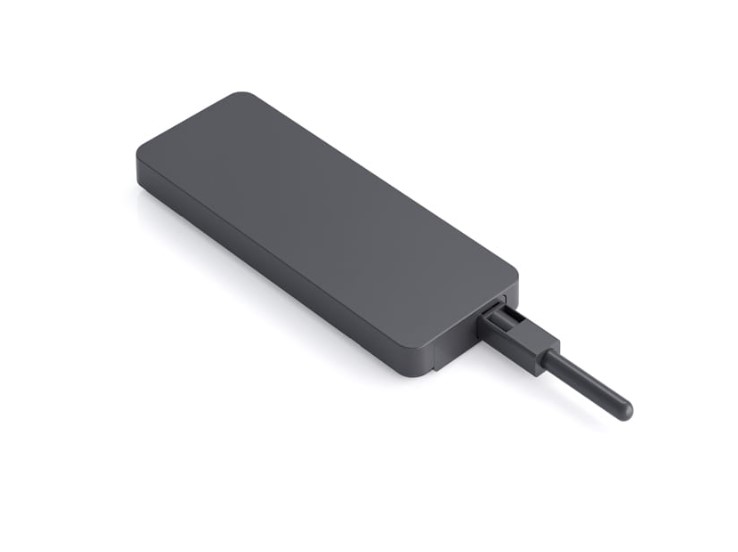

Pusher SMART PUSH push open+soft close, Strong (door 17-22kg), grey(PU1)

SMART PUSH is an innovative solution that transforms the way cabinets are opened and closed. Thanks to its advanced mechanism, you can enjoy a smooth and effortless door opening experience without the need for traditional handles.

Enhanced TIP-ON mechanism (push to open) with integrated soft-close.

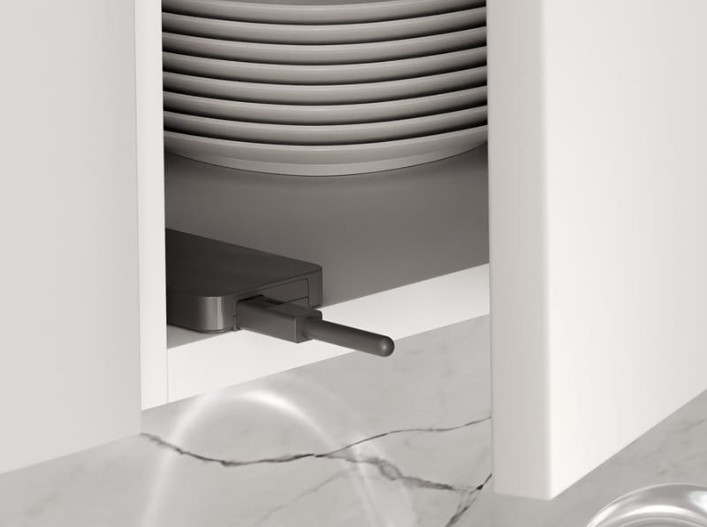

The product can be installed into different parts of the furniture (centre, right, left side). Installation requires 4 screws, which are screwed into the holes beneath the housing (the screws will not be visible). The Smart Push mechanism can be hidden inside the furniture board (at least 16mm thick) by milling out a suitable recess, then gluing or sticking the mechanism into the recess.

The stroke length is adjustable within a 5mm range.

The STRONG version is suitable for doors weighing 17-22kg.

Silicone pads – dampen sound when closing.

Technical data

Length: 152mm
Width: 56mm
Height: 14mm

*Set includes:

SMART PUSH mechanism – 1 pc
Mounting screw
